拉挤格栅 I-6020
欢迎询价。
Genius FRP

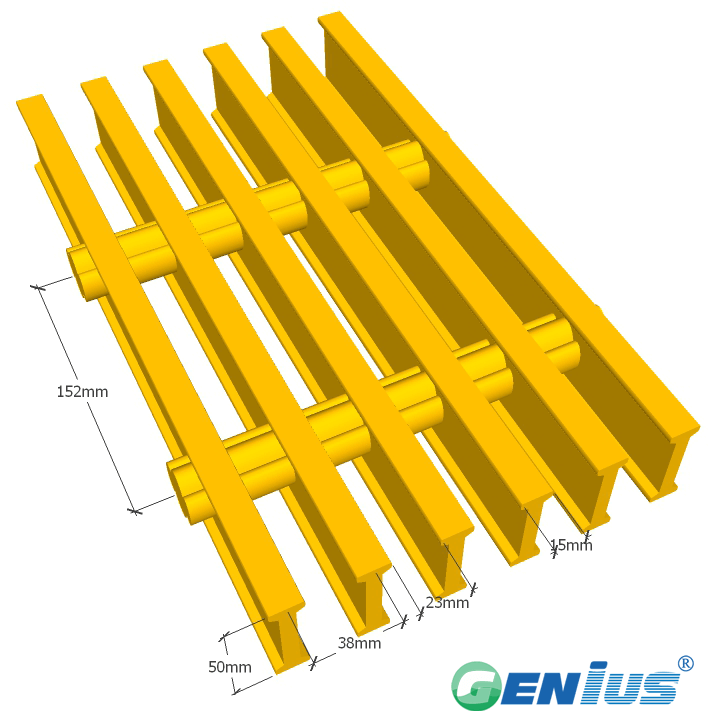

Pultruded FRP grating is made of pultruded "I", "T" shaped profile as a bearing strip, with a solid pipe or bar as a connecting rod, made by a certain assembly process with a gap of the plate.
Name | Contect | Type |
Resin | 25% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 65% | E |
Filler | 8% | ATH、PR |
Others | 2% | --- |
Introduction of raw materials
Resin type Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |
Sand surface
Smooth surface
Antiskid groove surface
Standard Panel Size:
1220mm,915mm-wide 3050mm,6100mm-length
Bearing Bar: 50mm
Open Area: 60%
Approx Weight (With three-core shoots): 20.1kg/m²
Liner load(units:mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m |
(mm) | 300 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
450 | 0.09 | 0.23 | 0.3 | 0.46 | 0.61 | 0.76 | 0.92 |
600 | 0.21 | 0.54 | 0.72 | 1.09 | 1.45 | 1.82 | 2.18 |
900 | 0.73 | 1.84 | 2.46 | 3.69 | 4.92 | 6.15 | 7.38 |
1200 | 1.75 | 4.37 | 5.83 | 8.75 | 11.7 | 14.5 | --- |
Uniform load(units:mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² |
(mm) | 1000 | 2000 | 3000 | 4000 | 5000 | 7000 | 8000 |
450 | 0.19 | 0.38 | 0.57 | 0.76 | 0.96 | 1.34 | 1.53 |
600 | 0.45 | 0.91 | 1.36 | 1.82 | 2.27 | 3.19 | 3.64 |
900 | 1.53 | 3.07 | 4.61 | 6.15 | 7.69 | 10.7 | 12.4 |
1200 | 3.64 | 7.29 | 11 | 14.6 | --- | --- | --- |
The characteristics:
Fire Retardant
High Flame Resistance
Low Smoke and Toxic Fume Emissions
High Strength-to-Weight Ratio
Corrosion Resistant
Low Maintenance
Slip Resistant
Electrically & Thermally Non-Conductive
Easily Fabricated
Impact Resistant
UV resistance
Maintenance free
Installation and accessories
