玻璃钢模塑格栅38*38H25

欢迎询价。

Genius FRP

Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.

Name

Content

Type

Resin

35%

OFR-25、IFR-25、VEFR-25

Fiberglass

33%

Filler

31%

ATH、PR

Others

---

Introduction of raw materials
Resin type

Code

Resin type

Flame retardant property

Recommended usage occasions

MP-5

Phenolic type

Oxygen index can reach about 80

Low toxicity and high flame retardant, fire safety is very important for the occasion

VEFR-5

Vinyl type

Oxygen index 28 or above

Acid, alkali and other corrosive harsh environment

VEFR-10

Vinyl type

Oxygen index 35 or above

Flame retardant requirements of high acid, alkali and good occasions

IFR-25

Meta benzene

Oxygen index 28 or above

A VEFR type economy, and excellent, moderate acid alkali and solvent

IFGR-30

Benzene food grade

Oxygen index 26

Mainly used in meat products and food processing plants

OFR-25

Ortho type

Oxygen index 28 or above

General acid and alkali environment

OCR

Ortho type

Oxygen index below 28

OFR-25 economy, no flame retardant requirements

The type selection of coarse glass fiber

Code

Coarse sand type

Recommended usage occasions

Non alkali sand

For high strength requirements and high corrosion resistance of the occasion

Selected filler type

Code

Filler type

Recommended usage occasions

ATH

Aluminum hydroxide

Retardant, smoke suppression, corrosion-resistant occasions

No filler, pure resin

For high corrosion-resistant applications

Groove type

Polished type

Shop sand type

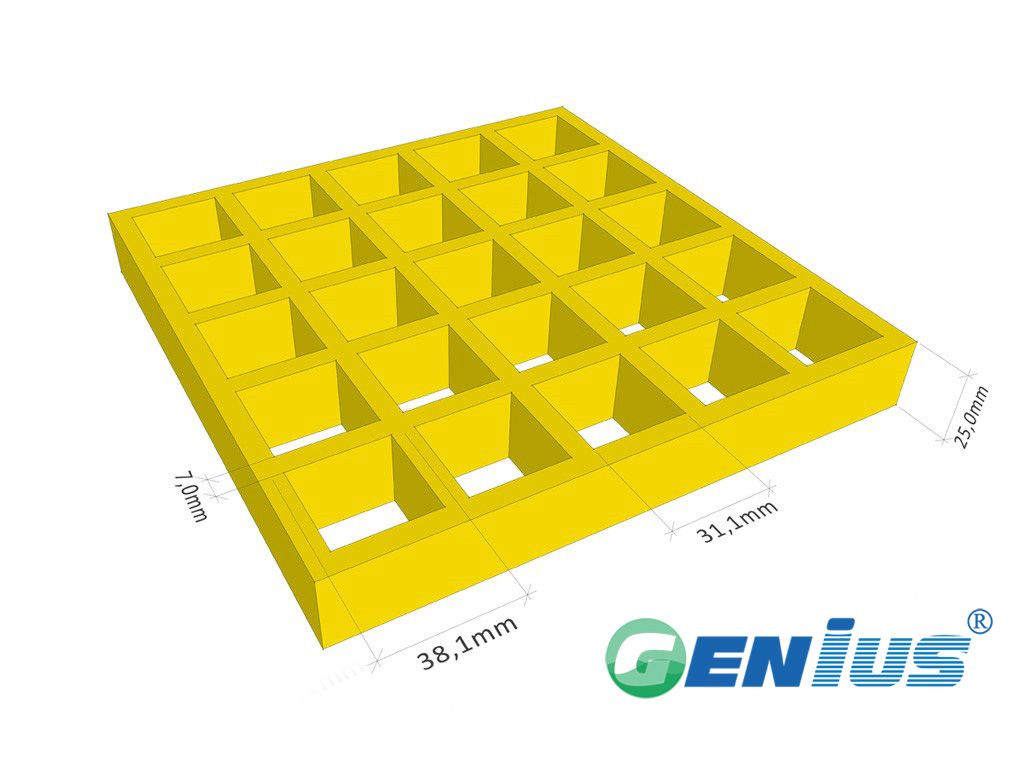

383825(mm)

Panel size available:

1220*4010,1220*3660,1524*4010,

997*3012,915*3050Bidirectional force.

Bearing bar thickness (Top/Bottom)：6.4/5.0

Bearing bar center：38

Opea Area：68%

Approx Weight:12.3kg/㎡

Liner load（units:mm）

Deflcvtion			kg/m				Limit
Span (mm)	75	150	300	450	600	750	Load
450	0.56	1.15	6	3.07	4.11	4.75	3910
600	0.86	1.70	3.50	5.16	1	8.18	2924
900	2.90	5.92	12.1	18.4	---	---	1948
1200	5.72	111	---	---	---	---	1461

Uniform load（units：mm）

Deflcvtion				kg/m²			Limit
Span (mm)	240	480	980	1450	2450	3650	Load
450	0.66	1.1	1.93	2.77	4.47	6.58	---
600	1.12	2.1	4.14	6.17	10.2	15.3	---
750	2.67	5.39	10.8	16.3	---	---	---
900	5.54	11.2	21.7	---	---	---	---

The characteristics:

Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability

Widely used in:

Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.

Chemical Resisitance Chart
