Pultruded Grating HL-5020
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
Pultruded FRP grating is made using pultruded "I"-shaped and "T"-shaped profiles as load-bearing bars and solid tubes or rods as connecting bars, assembled through a defined assembly process, with gaps in the panel surface.
Name | Content | Type |
|---|---|---|
Resin | 25% | OFR-25,IFR-25,VEFR-25 |
Glass fiber | 65% | E |
Filler | 8% | ATH,PR |
Others | 2% | --- |
Code | Resin type | Flame retardancy | Recommended applications |
|---|---|---|---|
MP-5 | Phenolic type | Oxygen index can reach approximately 80 | Low toxicity and high flame retardancy, suitable for applications where fire safety is critical |
VEFR-25 | Vinyl ester type | Oxygen index 28 and above | Harsh environments with strong corrosivity such as acids and alkalis |
VEFR-10 | Vinyl ester type | Oxygen index 35 and above | Applications with high flame retardancy requirements involving strong acids, strong alkalis and benign environments |
IFR-25 | Isophthalic type | Oxygen index 28 and above | VEFR economical grade, good performance, resistant to moderate acids, alkalis and solvents |
IFGR-30 | Benzene-type food grade | Oxygen index 26 | Mainly used in meat processing and food processing plants |
OFR-25 | Orthophthalic type | Oxygen index 28 and above | General acid and alkali environments |
OCR | Orthophthalic type | Oxygen index below 28 | OFR-25 economical grade, no flame retardancy requirement |
Coarse glass fiber options
Code | Coarse sand type | Recommended applications |
E | E-glass sand | For high-strength requirements and highly corrosive environments |
Filler type options
Code | Filler type | Recommended applications |
|---|---|---|
ATH | Aluminum hydroxide | Flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | No filler, pure resin | For highly corrosive applications |
Standard panel size:
1220mm, 915mm - width; 3050mm, 6100mm - length

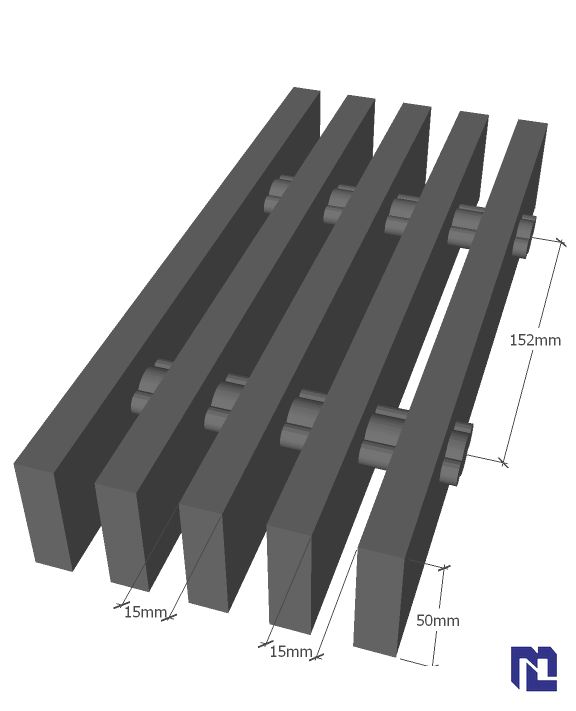

Load-bearing flat bar: 50mm
Open area: 50%
Approximate weight (including three core bars): 52.24kg/m²
Line load (unit: mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m |
|---|---|---|---|---|---|---|---|---|---|
(mm) | 150 | 300 | 450 | 750 | 1500 | 3000 | 4500 | 6000 | 7500 |
| 600 | 0.04 | 0.08 | 0.1 | 0.18 | 0.37 | 0.71 | 1.08 | 1.42 | 1.79 |
| 750 | 0.06 | 0.12 | 0.2 | 0.33 | 0.65 | 1.3 | 1.95 | 2.62 | 3.27 |
| 900 | 0.1 | 0.22 | 0.33 | 0.55 | 1.1 | 2.19 | 3.27 | 4.37 | 5.47 |
| 1200 | 0.26 | 0.51 | 0.77 | 1.28 | 2.56 | 5.12 | 7.68 | 10.2 | 12.8 |
Uniform load (unit: mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² |
|---|---|---|---|---|---|---|---|---|---|
(mm) | 450 | 950 | 1450 | 2450 | 4850 | 9800 | 14500 | 19500 | 24400 |
| 600 | 0.04 | 0.08 | 0.14 | 0.22 | 0.45 | 0.89 | 1.34 | 1.79 | 2.21 |
| 750 | 0.1 | 0.2 | 0.3 | 0.51 | 1.02 | 2.03 | 3.07 | 4.08 | 5.1 |
| 900 | 0.2 | 0.41 | 0.61 | 1.02 | 2.05 | 4.1 | 6.14 | 8.19 | 10.2 |
| 1200 | 0.65 | 1.28 | 1.93 | 3.21 | 6.4 | 12.8 | --- | --- | --- |
Features:
Flame retardant
High fire resistance
Low smoke and low toxicity gas emissions
High strength-to-weight ratio
Corrosion resistant
Low maintenance cost
Anti-slip
Non-conductive and non-thermal-conductive
Easy to process
Impact resistant
UV resistant
Maintenance-free
Installation and accessories
Application Scenarios
Pultruded grating HL-5020 is suitable for industrial platforms, walkways, trench covers and equipment operating surfaces that require load-bearing capacity, corrosion resistance and slip resistance. Typical applications include chemical, water treatment, electroplating, marine engineering and other wet or corrosive environments, and it can also be used in structural parts requiring insulation or lightweight construction. Please contact us to confirm suitability for your specific application.
Selection Guide
When selecting, consider the load-bearing span, the corrosive media in the service environment, whether flame retardancy is required and the installation method, then match the appropriate resin type and grating thickness. Different resin systems have different strengths in corrosion resistance and flame retardancy; please contact us for detailed specifications and selection advice. We can recommend a suitable configuration based on your operating conditions.
Product Advantages
Pultruded grating is assembled from pultruded "I" and "T" profiles as load-bearing bars and solid tubes or rods as connecting rods. It is lightweight, high-strength, corrosion-resistant and not prone to rusting. Compared with traditional metal grating, it is free from electrochemical corrosion, has lower maintenance costs, and is easy to cut and install on site. Its overall structure is stable and suitable for long-term exposure to harsh environments.
Inquiry Prompt
For specific specifications, resin options and commercial terms for pultruded grating HL-5020, please contact us for detailed specifications and a quotation. Please provide your service environment, load-bearing requirements and size requirements, and we will match a suitable solution and reply as soon as possible.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
