Pultruded Grating I-5015
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
Pultruded FRP grating is made with pultruded "I"-shaped and "T"-shaped profiles as load-bearing bars and solid tubes or rods as connecting rods, assembled through a specific assembly process, with gaps left in the panel surface.
Name | Content | Type |
|---|---|---|
Resin | 25% | OFR-25,IFR-25,VEFR-25 |
Glass fiber | 65% | E |
Filler | 8% | ATH,PR |
Other | 2% | --- |
Code | Resin type | Flame retardant performance | Recommended applications |
|---|---|---|---|
MP-5 | Phenolic type | Oxygen index up to about 80 | Low toxicity and high flame retardancy, suitable for applications with very high fire safety requirements |
VEFR-25 | Vinyl type | Oxygen index 28 and above | Harsh environments with strong corrosiveness such as acids and alkalis |
VEFR-10 | Vinyl type | Oxygen index above 35 | Strong acids and alkalis with high flame retardant requirements, and applications with relatively favorable service conditions |
IFR-25 | Isophthalic type | Oxygen index 28 and above | VEFR economical grade, excellent performance, resistant to moderate acids, alkalis and solvents |
IFGR-30 | Food-grade phenolic/benzene-class resin | Oxygen index 26 | Mainly used in meat processing and food processing plants |
OFR-25 | Orthophthalic type | Oxygen index 28 and above | General acid and alkali environments |
OCR | Orthophthalic type | Oxygen index below 28 | OFR-25 economical grade, no flame-retardant requirement |
Choice of coarse glass fiber type
Code | Coarse grit type | Recommended applications |
E | Alkali-free glass fiber | For high-strength and high-corrosion-resistance applications |
Choice of filler type
Code | Filler type | Recommended applications |
|---|---|---|
ATH | Aluminum hydroxide | Flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | No filler, pure resin | For high-corrosion-resistance applications |

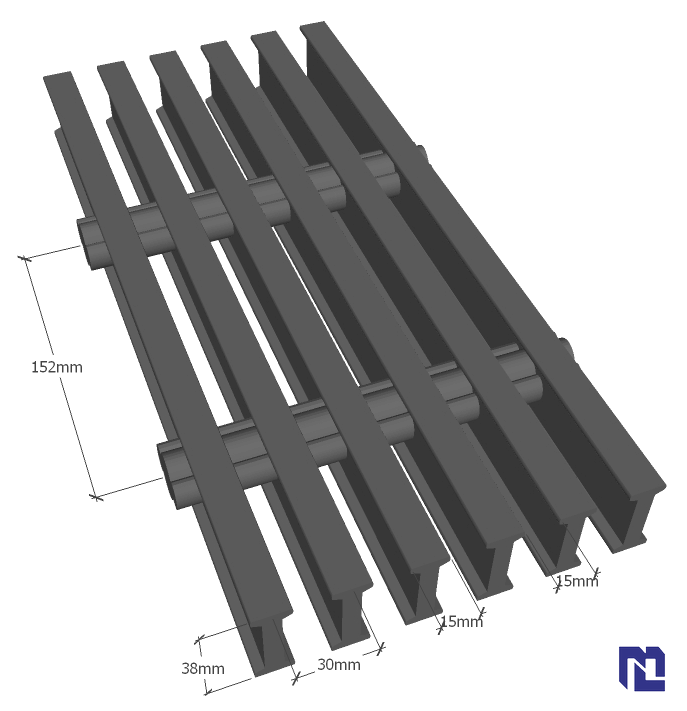

Standard panel size:
1220mm, 915mm - width; 3050mm, 6100mm - length
Load-bearing flat bar: 38mm
Open area: 50%
Approx. weight (including three-core stranded wire): 19.1kg/m²
Line load (unit: mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Limit |
|---|---|---|---|---|---|---|---|
(mm) | 300 | 450 | 750 | 1500 | 3000 | 5950 | Load |
| 450 | 0.15 | 0.25 | 0.51 | 1.02 | 1.78 | 3.3 | 21836 |
| 600 | 0.31 | 0.51 | 1.02 | 1.78 | 3.56 | 6.86 | 16385 |
| 900 | 1.02 | 1.52 | 2.54 | 6.08 | 11.9 | 20.9 | 10576 |
| 1200 | 2.89 | 4.56 | 7.84 | 14.9 | 28.4 | --- | 7567 |
Uniformly distributed load (unit: mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Limit |
|---|---|---|---|---|---|---|---|
(mm) | 1000 | 1900 | 3900 | 7000 | 9500 | 19500 | Load |
| 450 | 0.25 | 0.51 | 0.96 | 2.27 | 2.97 | 4.56 | 95537 |
| 600 | 0.81 | 1.52 | 2.61 | 4.95 | 6.96 | 12.9 | 53755 |
| 900 | 2.58 | 4.93 | 9.15 | 17.7 | --- | --- | 23164 |
| 1200 | 6.59 | 12.7 | --- | --- | --- | --- | 12422 |
Features:
Flame retardant
High flame retardancy
Low smoke and low-toxicity gas emission
High strength-to-weight ratio
Corrosion resistant
Low maintenance
Anti-slip
Non-conductive and non-thermal-conductive
Easy to process
Impact resistance
UV resistance
Maintenance-free
Installation and accessories
Application scenarios
Pultruded grating I-5015 is suitable for platforms, walkways, trench covers and equipment operating surfaces that require a combination of load bearing, corrosion resistance and ventilation/drainage, and is commonly used in corrosive environments such as chemical, water treatment, power and marine engineering. Specific application suitability should be assessed against load, span and media conditions; contact us for tailored recommendations.
Selection guide
When selecting, please confirm in particular the resin system (such as orthophthalic, isophthalic, vinyl ester or phenolic) and flame retardancy requirements, the grating thickness and bearing bar spacing, and whether the connecting rod type matches your span and load. We can recommend suitable specification combinations based on your operating conditions; contact us for detailed specifications and quotations.
Product advantages
With pultruded I-profiles as bearing bars and solid tubes or rods as connecting rods, the product offers good longitudinal load-bearing capacity and corrosion resistance while remaining lightweight, and is easy to cut, install and maintain. Anti-slip surface, color and other options can be configured as needed; contact us to confirm available options.
Inquiry guidance
For detailed specifications of I-5015, resin selection, custom sizes and commercial terms, contact us for detailed specifications and quotations; we will provide selection advice and technical support based on your operating conditions.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
