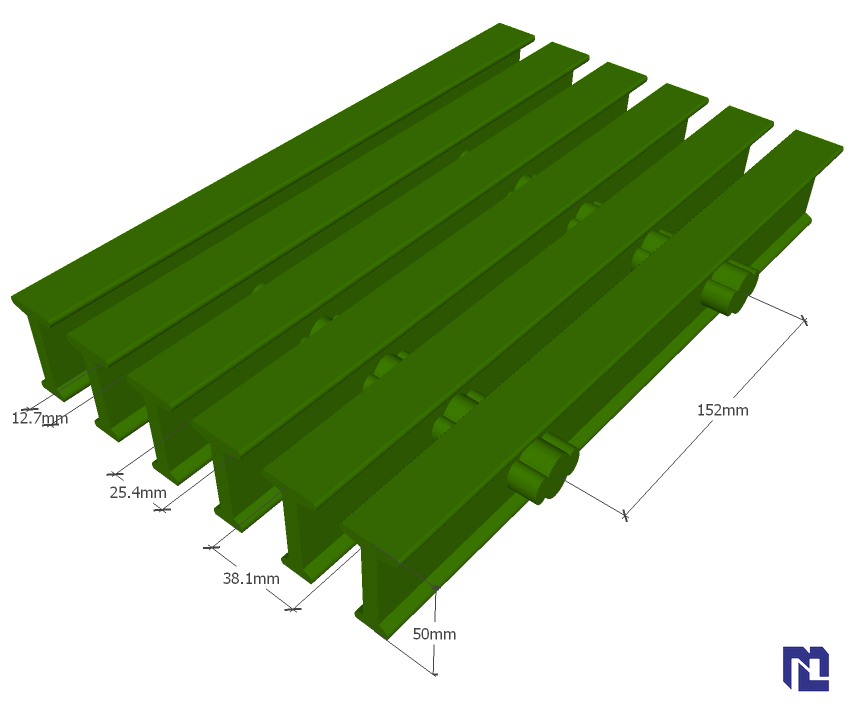

Pultruded Grating T-3320
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
Pultruded FRP grating is made using pultruded "I"- and "T"-shaped profiles as load-bearing bars and solid tubes or rods as connecting rods, assembled through a defined assembly process, with gaps left in the panel surface.
Name | Contact Information | Type |
|---|---|---|
Resin | 25% | OFR-25,IFR-25,VEFR-25 |
Glass Fiber | 65% | E |
Filler | 8% | ATH,PR |
Other | 2% | --- |
Code | Resin Type | Flame Retardancy | Recommended Applications |
|---|---|---|---|
MP-5 | Phenolic Type | Oxygen index can reach approximately 80 | Low toxicity and high flame retardancy; suitable for applications with high fire safety requirements |
VEFR-25 | Vinyl Ester Type | Oxygen index of 28 and above | Harsh environments with strong acid, alkali and other corrosive media |
VEFR-10 | Vinyl Ester Type | Oxygen index above 35 | Strong acids, strong alkalis and applications with better service conditions where higher flame retardancy is required |
IFR-25 | Isophthalic Type | Oxygen index of 28 and above | VEFR economical type, good performance, resistant to moderate acids, alkalis and solvents |
IFGR-30 | food-grade benzene type | oxygen index 26 | mainly used for meat products and food processing plants |
OFR-25 | orthophthalic type | Oxygen index of 28 and above | general acid and alkali environments |
OCR | orthophthalic type | oxygen index below 28 | OFR-25 economical type, no flame-retardant requirement |
selection of coarse glass fiber
Code | coarse sand type | Recommended Applications |
E | E-glass sand | for applications requiring high strength and high corrosion resistance |
selection of filler type
Code | filler type | Recommended Applications |
|---|---|---|
ATH | aluminum hydroxide | flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | no filler, pure resin | for high corrosion resistance applications |
Standard panel size:
1220mm, 915mm wide; 3050mm, 6100mm long
Bearing bar: 50mm
Open area: 33%
Approx. weight (incl. three-core [source unclear]): 20.27kg/m²
Line load (unit: mm)
Spacing | kg/m | kg/m | kg/m | kg/m | kg/m | kg/m | Ultimate |
|---|---|---|---|---|---|---|---|
(mm) | 300 | 450 | 750 | 1500 | 3000 | 5950 | Load |
| 600 | --- | 0.25 | 0.51 | 1.02 | 1.78 | 3.3 | 16876 |
| 900 | 0.51 | 0.76 | 1.27 | 2.29 | 4.57 | 9.4 | 7492 |
| 1200 | 1.02 | 1.52 | 2.29 | 4.83 | 9.91 | 19.6 | 4215 |
| 1500 | 1.78 | 2.79 | 4.57 | 9.14 | 18.3 | 36.6 | 2696 |
Uniformly distributed load (unit: mm)
Spacing | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | kg/m² | Ultimate |
|---|---|---|---|---|---|---|---|
(mm) | 1000 | 1900 | 3900 | 7000 | 9500 | 19500 | Load |
| 600 | 0.25 | 0.51 | 0.76 | 1.52 | 2.03 | 4.06 | 55368 |
| 900 | 0.76 | 1.52 | 3.05 | 5.59 | 7.73 | 15 | 36895 |
| 1200 | 2.29 | 4.57 | 9.4 | --- | --- | --- | 27659 |
| 1500 | 5 | 9.91 | --- | --- | --- | --- | 22137 |
Features:
Flame retardant
High flame retardancy
Low smoke and low-toxicity gas emission
High strength-to-weight ratio
Corrosion resistant
Low maintenance
Anti-slip
Electrical and thermal insulation
Easy to fabricate
Impact resistance
UV resistance
Maintenance-free
Installation and accessories
Application scenarios
Pultruded grating T-3320 is suitable for industrial platforms, walkways, trench covers and equipment operating surfaces where load-bearing and corrosion resistance are required. If your operating conditions involve specific media, temperatures or load conditions, please contact us to discuss your specific service environment.
Selection guidance
When selecting, factors such as resin type (e.g. orthophthalic, isophthalic, vinyl ester or phenolic), load bar specifications, grating thickness and mesh size, as well as installation support span, should be considered comprehensively. Please inform us of your service environment and load-bearing requirements, and we will help you confirm a suitable configuration.
Product advantages
Pultruded grating uses pultruded profiles as load bars, offering high longitudinal strength and stiffness, light weight, corrosion resistance, ease of cutting and installation, and reduced maintenance requirements. Compared with traditional metal grating, it is more adaptable in corrosive environments such as humid, acid and alkaline conditions.
Inquiry guidance
For detailed specifications, resin system options and quotation information for pultruded grating T-3320, please contact us and we will provide corresponding support based on your project requirements.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
