FRP Molded Grating 50*50 H25
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
FRP molded grating is a panel with a certain open area, made in custom molds with unsaturated polyester resin (including isophthalic, orthophthalic, phenolic and bisphenol types) as the matrix.
Name | Content | Type |
|---|---|---|
Resin | 35% | OFR-25,IFR-25,VEFR-25 |
Glass fiber | 33% | E |
Filler | 31% | ATH,PR |
Other | 1% | --- |
Raw material introduction
Resin type
Code | Resin type | Flame retardancy | Recommended applications |
|---|---|---|---|
MP-5 | Phenolic type | Oxygen index up to about 80 | Low toxicity, high flame retardancy; suitable for applications with very high fire safety requirements |
VEFR-25 | Vinyl ester type | Oxygen index 28 and above | Harsh corrosive environments such as acids and alkalis |
VEFR-10 | Vinyl ester type | Oxygen index above 35 | High acid and alkali environments with flame retardancy requirements and good performance applications |
IFR-25 | Isophthalic type | Oxygen index 28 and above | VEFR economical type, good performance, resistant to moderate acids, alkalis and solvents |
IFGR-30 | Benzene-based, food grade | Oxygen index 26 | Mainly used in meat processing and food processing plants |
OFR-25 | Orthophthalic type | Oxygen index 28 and above | General acid and alkali environments |
OCR | Orthophthalic type | Oxygen index below 28 | OFR-25 economical type, no flame retardancy requirement |
Selection of coarse glass fiber
Code | Coarse grit type | Recommended applications |
E | E-glass grit | For applications requiring high strength and high corrosion resistance |
Selection of filler type
Code | Filler type | Recommended applications |
|---|---|---|
ATH | Aluminum hydroxide | Flame-retardant, smoke-suppressing and corrosion-resistant applications |
PR | No filler, pure resin | For high corrosion resistance applications |

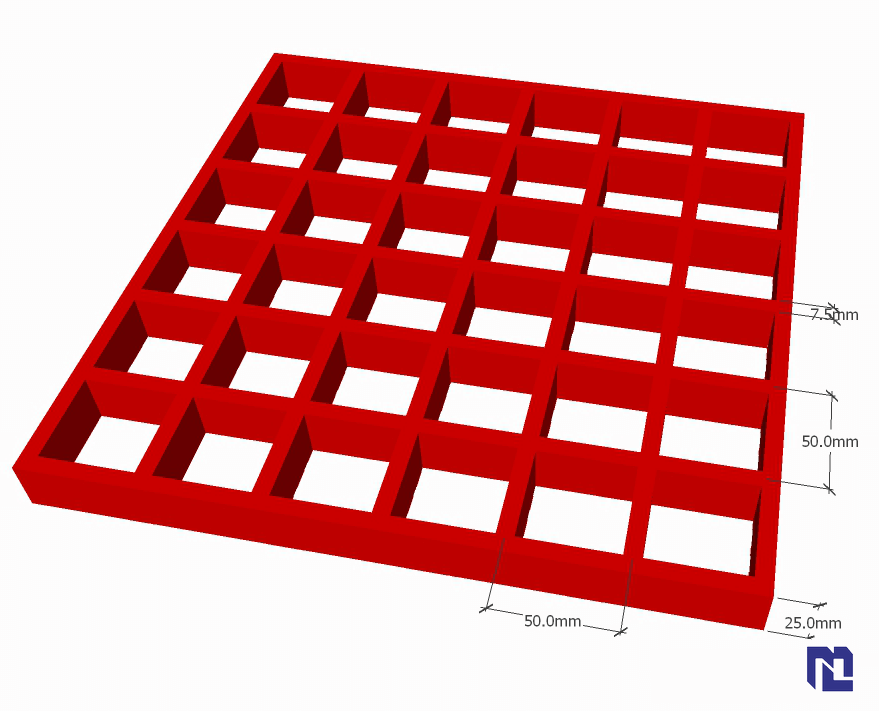

50*50*25(mm)
Available panel sizes:
1220*3660,1220*2440,915*3050
Bidirectional load bearing.
Load-bearing flat bar thickness (top/bottom): 7.5/6.0
Load-bearing flat bar center spacing: 50
Open area: 78%
Approx. weight: 11.5 kgs/m²
Line load (unit: mm)
Span (mm) | Load per meter width (kN/m, concentrated load) | Maximum recommended value | Apparent E1*10^6 N-mm^2/m |
|---|---|---|---|
| 400 | 2.8 | 30 | 11.8 |
| 600 | 7.6 | 21 | 14.9 |
Uniformly distributed load (unit: mm)
Span (mm) | Load (kN/sqm, uniformly distributed) | Maximum recommended value | Apparent E1*10^6 N-mm^2/m |
|---|---|---|---|
| 400 | 0.7 | 154 | 11.8 |
| 600 | 2.8 | 73 | 14.9 |
| 800 | 0.8 | 35 | 16.5 |
Features:
Corrosion resistant
Slip resistant
Superior ergonomic design
Low installation cost
Flame retardant
Lightweight with high bidirectional strength; cutting makes the grating easier to install.
Uniform interior and exterior color, with colors freely selectable.
Delivers favorable social and economic benefits.
Can be designed, with flexible and diverse sizes and stable dimensions
Widely used in:
Greenlogy TEC FRP grating is widely used for platform (industrial) flooring, stairways, walkways and platforms. Using fiberglass reinforced plastic grating offers many advantages: FRP grating has good weather resistance, low maintenance cost, long service life and good anti-slip performance. In addition, FRP grating is simple, fast and flexible to process and assemble.
Application Scenarios
FRP molded grating 50*50H25 is commonly used for operating platforms, walkways and trench covers in corrosive environments such as chemical, electroplating and wastewater treatment, and is also suitable for marine engineering, ship decks and other applications requiring salt-spray resistance. Its 25 mm thickness balances load-bearing capacity and light weight, making it suitable for medium- and low-load pedestrian walkways or equipment supports. For selection advice for specific working conditions, please contact us.
Selection Guide
Selection should comprehensively consider the resin type (such as orthophthalic, isophthalic, vinyl ester, etc.), grating thickness, mesh size, load requirements and operating environment. Different resins emphasize different properties such as corrosion resistance and flame retardancy; for example, isophthalic resin has better water resistance, while vinyl ester resin resists strong corrosion. We recommend that you provide specific application conditions, and our technical team will assist you in choosing the right product.
Product Advantages
FRP molded grating features light weight and high strength, corrosion resistance, anti-slip, insulation and maintenance-free performance, with a long service life and convenient installation. Its mesh structure allows fluids to pass through, reducing water accumulation and debris buildup. Compared with metal grating, FRP grating is more durable in wet and corrosive environments and requires no regular painting.
Inquiry Guidance
For detailed specifications, prices and supply information on FRP molded grating 50*50H25, please contact us for professional consultation and a quotation. We can provide customized solutions according to your needs.
Operating Environment
- The 50×50 mm mesh, 25 mm thick FRP molded grating is designed for indoor and outdoor use in industrial facilities, including weather-exposed walkways, platforms and stair treads.
- The isophthalic, vinyl ester and bisphenol A unsaturated polyester resin systemsmolded FRP grating can withstand the humid, wet and chemically corrosive atmospheres encountered in processing plants, water treatment and chemical handling areas.
- Its corrosion-resistant fiberglass reinforced plastic construction is suitable for locations where weak acids, weak alkalis or salts may be present, helping to extend service life compared with conventional materials.
- For detailed temperature limits, chemical resistance tables or load tables, please contact us to request the full technical data sheet.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
