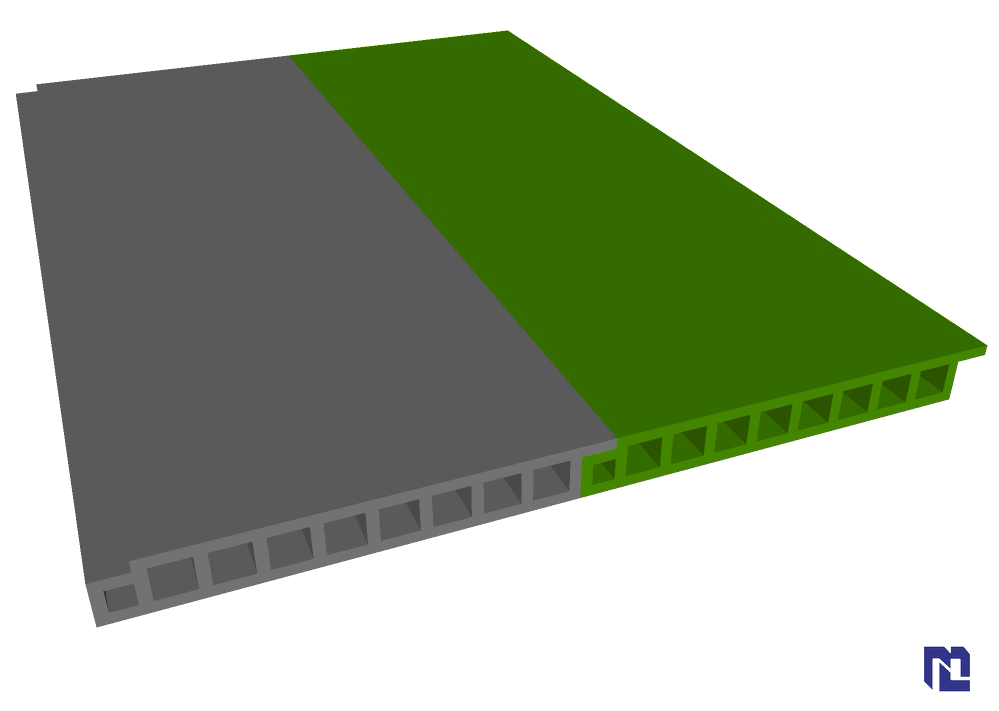

Structural Profiles - Floor Panels (Isophthalic)
Request a Quote
Please feel freely to contact with us for new price .
Greenlogy TEC
FRP pultruded profiles are a new type of composite material made with glass fiber reinforcement as the base material, resin as the binder, and glass fiber cloth as the wrapping reinforcement layer; after thorough impregnation, the material is heated, formed, and cured in a metal mold and then pultruded by a pulling machine. With good physical properties, they are widely used in high-strength, long-span applications.
Type | Size (mm) | Weight (kg/m) | Size (in) | Weight (lbs/in) |
|---|---|---|---|---|
| FL-A | 508*7*50.8*8 | 19.7 | 20" x 1/4" x 2" x 5/16" | 43.4 |
| FL-B | 635*12*101.6*13 | 54.6 | 25" x 1/2" x 4" x 1/2" | 120 |
| FL-C | 498*4*50*4 | 9.4 | 20" x 3/16" x 2" x 3/16" | 20.7 |
| 50*20*4*4 | 0.7 | 2" x 13/16" x 3/16" x 3/16" | 1.54 | |
| 55*31*3*3 | 0.6 | 9/4" x 5/4" x 1/8" x 1/8" | 1.32 |
Market
Construction
Bridge and Highway
Chemical
Food and Beverage
Manufacturing
Metal and Mining
Microelectronics
Oil and Gas
Pharmaceutical
Power
Pulp and Paper
Recreation
Telecommunications
Transportation
Water and Wastewater Treatment
Features:
Corrosion Resistance
Low Maintenance
Flame retardant
Low installation cost
Heavy metal resistance
Long service life
Non-conductive, non-thermal-conductive
High strength-to-weight ratio
Raw material introduction — resin types
Code | Resin type | Flame retardant performance | Recommended applications |
|---|---|---|---|
VEFR-25 | Vinyl ester type | Oxygen index 28 and above | Acid, alkali and other harsh corrosive environments |
IFR-25 | Isophthalic type | Oxygen index 28 and above | VEFR type: economical product with good performance, moderate resistance to acids, alkalis and solvents |
OFR-25 | Orthophthalic type | Oxygen index 28 and above | General acid and alkali environments |
Applications:
Greenlogy TEC pultruded FRP structural profiles are used in a wide range of applications, combining corrosion resistance, high strength, dimensional stability and light weight, along with thermal insulation and non-conductive properties. Durable Greenlogy TEC profiles provide many years of low-maintenance service in areas where steel, aluminum or wood components have traditionally been specified. Today, these profiles are commonly used in highly corrosive applications that previously required stainless steel and other costly components.
Greenlogy TEC profiles
Mechanical properties | ASTM | Unit | Value | Unit | Value |
|---|---|---|---|---|---|
Tensile stress, longitudinal (LW) | D-638 | psi | 30000 | kgf/m² | 21092086 |
Tensile stress, transverse (CW) | D-638 | psi | 7000 | kgf/m² | 4921487 |
Tensile modulus, longitudinal (LW) | D-638 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Tensile modulus, transverse (CW) | D-638 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Compressive stress, longitudinal (LW) | D-695 | psi | 30000 | kgf/m² | 21092086 |
Compressive stress, transverse (CW) | D-695 | psi | 15000 | kgf/m² | 10546043 |
Compressive modulus, longitudinal (LW) | D-695 | 10^6psi | 2.5 | 10^6kgf/m² | 1758 |
Compressive modulus, transverse (CW) | D-695 | 10^6psi | 1 | 10^6kgf/m² | 703 |
Flexural stress, longitudinal (LW) | D-790 | psi | 30000 | kgf/m² | 21092086 |
Flexural stress, transverse (CW) | D-790 | psi | 10000 | kgf/m² | 7030695 |
Flexural modulus, longitudinal (LW) | D-790 | 10^6psi | 1.8 | 10^6kgf/m² | 1266 |
Flexural modulus, transverse (CW) | D-790 | 10^6psi | 0.8 | 10^6kgf/m² | 562 |
Modulus of elasticity | Full section | 10^6psi | 2.8 | 10^6kgf/m² | 1969 |
Shear modulus | --- | 10^6psi | 0.45 | 10^6kgf/m² | 316 |
Short-beam shear | D-2344 | psi | 4500 | kgf/m² | 3163813 |
Punch shear | D-732 | psi | 10000 | kgf/m² | 7030695 |
Notched Izod impact strength, longitudinal | D-256 | ft.-lbs./in. | 25 | kg/m | 3.46 |
Notched Izod impact strength, transverse | D-256 | ft.-lbs./in. | 4 | kg/m | 0.55 |
Excluding round rods and square rods
Physical properties | ASTM | Unit | Value |
|---|---|---|---|
Barcol hardness | D-495 | --- | 45 |
24-hour water absorption | D-570 | Max. % | 0.45 |
Density | D-792 | lbs./in.³ | 0.062-0.07 |
Coefficient of thermal expansion, lengthwise | D-696 | 10^-6in./in./℃ | 8 |
Flame retardant performance | ASTM | Unit | Value |
|---|---|---|---|
Tunnel test* | E-84 | Flame spread | Max. 25 |
Flame resistance* | D-635 | --- | Non-combustible |
Electrical properties | ASTM | Unit | Value |
|---|---|---|---|
Arc resistance, lengthwise | D-495 | 秒（s） | 120 |
Dielectric strength, lengthwise | D-149 | kv./in. | 35 |
Dielectric strength, PF | D-149 | Volts/mil | 200 |
Dielectric constant, PF | D-150 | @60hz | 5 |
LW = lengthwise, CW = crosswise, PF = perpendicular to laminate surface
*Applies to ISOFR and VEFR only
Applications
Isophthalic structural profile floor panels are suitable for industrial platforms, walkways, trench covers and offshore facilities where high corrosion resistance is required. Their light weight, high strength and resistance to chemical attack make them widely used in the chemical, marine and wastewater treatment sectors.
Selection Guide
Selection should take into account load requirements, span, support spacing and the service environment. Profiles of different cross-sectional dimensions and thicknesses have different load-bearing capacities; we recommend consulting our technical team with your actual engineering conditions to obtain suitable specification recommendations.
Product Advantages
The isophthalic resin system gives the floor panels excellent corrosion resistance and water resistance, while glass fiber reinforcement ensures high strength and stiffness. The products are light in weight, easy to transport and install, and offer good electrical insulation and aging resistance.
Inquiry Guidance
For detailed specifications, technical parameters or customized solutions, please contact us for professional support and a quotation. We can provide selection advice and solutions based on your project requirements.
Service Environment
- These isophthalic resin FRP floor profiles are pultruded glass fiber composites, suitable for indoor factory floors and outdoor walkways, platforms and stair treads, replacing steel grating in damp or wet environments.
- The isophthalic resin matrix is selected to resist mildly corrosive media — splashes, salt-laden air and washdown conditions common in chemical, water treatment and coastal plants — rather than concentrated acids or strong solvents.
- Because the pultruded profiles contain no steel core, they suit areas where conventional metal grating would require frequent recoating due to corrosion; their surface does not produce sparks and will not cause rust staining on surrounding structures.
- Service temperature, chemical exposure and UV load vary with the installation environment; please contact Greenlogy TEC and provide the actual service conditions so that the appropriate resin grade, profile specification within the FL-A / FL-B / FL-C series, and fastening details can be confirmed.
Custom Cutting
Need panels that fit, or cut to shape? We custom cut FRP grating and profiles to your drawing: panels cut to size or to shape (corner cuts, cutouts), cut edges sealed with resin, and pre-cut and pre-drilled to drawing before shipping. See the custom cutting services.
